A General Sudoku Logic

Odd Loops, Broken Wings, and Dark Logic

Points. Odd length loops are present in many solving methods such as chains and dis-continuous nice loops. The broken wing method eliminates candidates by using the fact that odd length loops of strong links cannot occur in a valid puzzle. This method can be generalized using sets and represents a fundemental principle in Sudoku set logic.

Odd Length Loops

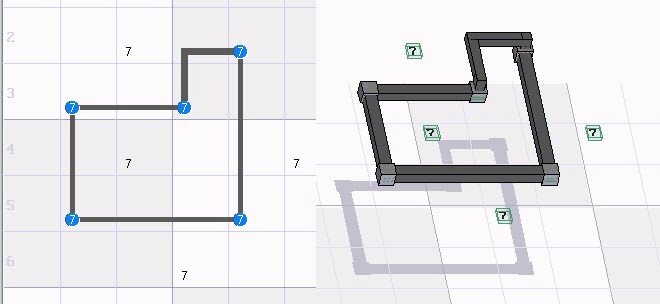

Many Sudoku solving methods are based on odd length loops. The simple chain example below left has 5 links and a target candidate (red) at the intersection of two linksets, r5c5. With a different set of strong links (right), the same nodes form a discontinuous nice loop that assigns the target candidate rather than eliminate it.

Illegal Logic and Rank

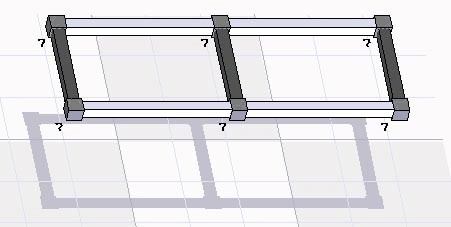

Illegal logic is any group of sets (or candidates) that has no solution, i.e., there is no way to arrange the candidates that is allowed by the rules. The illegal 'fish' below has 3 sets connected by two linksets where it's easy to verify that 3 candidates cannot be placed in 3 sets without placing 2 in a single linkset. The illegal structure, denoted by black sets, has a rank of 2 linksets - 3 sets, which equals minus 1.

Odd length loops of bi-value strong links are also illegal. The length 5 loop below can contain at most two nodes without double occupancy, which leaves one set unoccupied. Loops of any odd length have a rank of minus 1.

Broken Wings

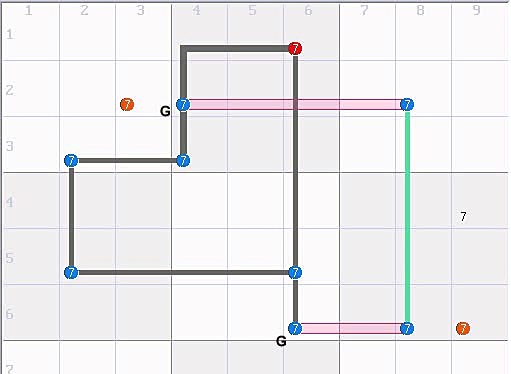

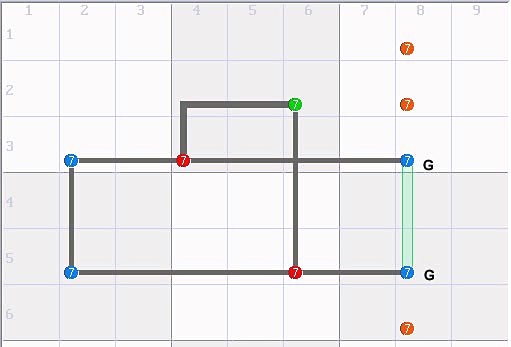

Broken Wing is a unique method that has been widely applied. It assumes that a valid puzzle cannot contain loops with an odd number of bi-value strong links (conjugate pairs). To be legal, at least one link must contain at least one extra candidate, called a guardian. If there is one guardian, it can be assigned. If there are multiple guardians, eliminations can be logically deduced. Guardians can be connected to a variety of logic. The lone guardian (G) in r3c8 below prevents the logic from being illegal and is thus assigned becoming a single. It then eliminates the orange candidates in column 8. Additional assignments and eliminations are explained later.

Broken Wings and Dark Logic

Broken wings occur naturally in set logic along with other odd length, strong-set logic. The following is a simple set logic view of broken wing principles that applies to a wide range of logic. In terms of set logic, the broken wing principle is both unique and elegant. The same principles can be applied to deadly patterns and URs.

To keep track of what's what, the term dark refers to anything illegal caused by odd length loops. A dark loop contains the sets and nodes belonging to illegal logic but not guardians or other logic that may be in the same sets. Defined this way, dark loops have the following properties:

A dark loop of any size has a rank of minus 1 and is outside of the set and linkset groups that determine eliminations in the rest of the logic (according to set theory)

A dark loop can be removed and the remaining candidates, such as guardians, placed in a virtual set that behaves like ordinary sets. This virtual set can span rows, columns, and boxes.

In short, a broken wing is made of a dark loop plus guardian candidates, all contained in the same sets. The dark logic disappears (sets and nodes) leaving behind the guardians that act as if they were in one virtual set. (Why?, becasue of the dark force, of course.)

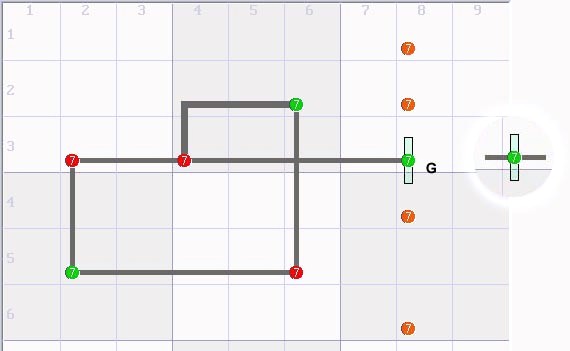

Below is a two-guardian broken wing. Although neither guardian can be assigned, one must be true so the linkset in column 8 is always occupied, or rank 0, which eliminates the red candidates.

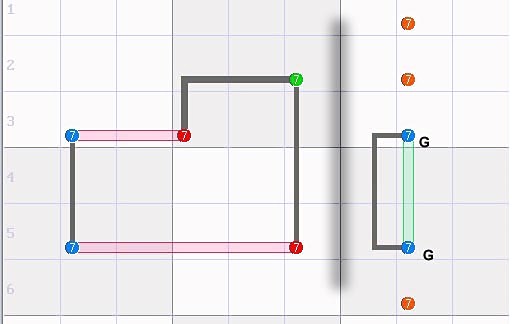

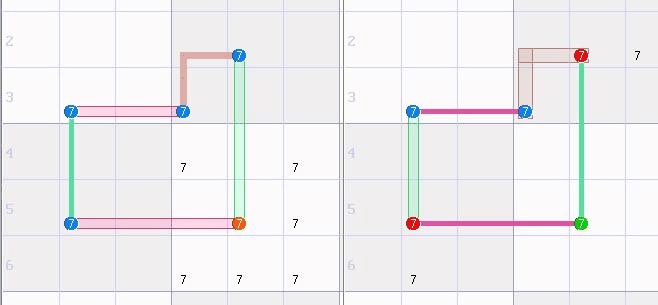

From the set logic view, the dark loop's guarantee of one true guardian effectively divides the problem in two. On the right, the guardians now work as if they are in a single virtual set, which forms something like locked candidates, except it spans 2 boxes. On the left, the guarantee of one true guardian means that rows r3 and r5 are linksets for the dark loop, which is solved in the normal way as a discontinuous nice loop that assigns 7r2c6, thus eliminating the two red candidates.

Implications

There must be a large number of odd length loops in every Sudoku grid, each of which can be broken into a dark loop and a virtual set. A set logic solver could first catalog these virtual sets and add them to the set base when searching for logic. Something similar could probably be done with other solvers.

The same principles can be applied to deadly patterns and unique rectangles, which also require at least one additional candidate to be legal. The deadly patterns can be removed and the remaining candidates from their sets placed in a virtual set. The only difference is that broken wings are naturally illegal while deadly rectangles are illegal by the convention that valid puzzles have one solution.

Examples

Below is a chain is made of 4 linksets and 3 sets including the virtual set in the middle of the chain. In set terms, the dark loop is replaced by virtual set V making the chain:

c55-(r55)-n52-(V)-n38-(c85)-r75 => r7c5 <> 5

where sets are in ( ) and linksets are not. Written as a chain:

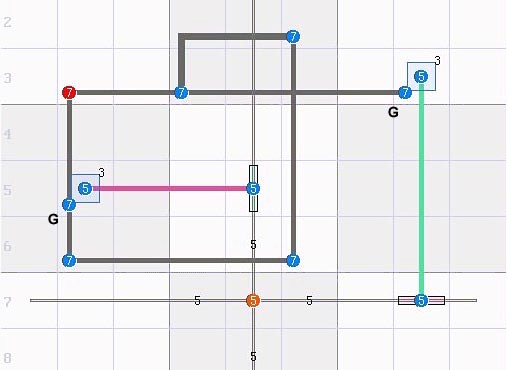

5r7c5-5r5c5=5r5c2-7r5c2=V=7r3c8-5r3c8=5r7c8-5r7c5 => r7c5 <> 5

Set r37 is then a linkset and the dark loop is solved as another chain:

7r3c2-7r3c4=7r2c6-7r6c6=7r6c2-7r3c2 => r3c2 <> 7

This X-wing has a set in column 8, a virtual set from 7r2c4 to 7r6c6, and linksets in rows 2 and 6, which eliminate candidates 7r2c3 and 7r6c9.

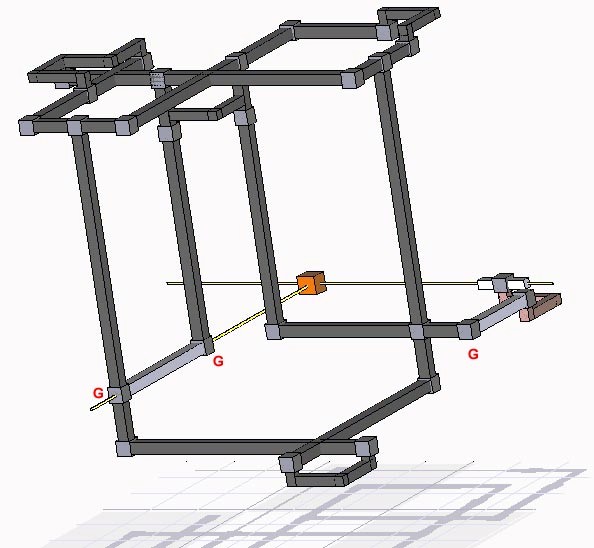

The 3D Kraken fish, shown in 3D, has 5 sets, including the dark loop, 6 linksets, and a rank of 1. The virtual set has 3 candidates. The loop sits vertical with the virtual set on the bottom and the middle red row set on top.

Complex Examples

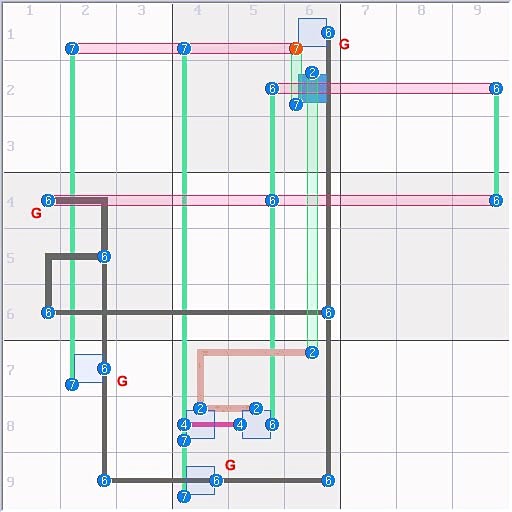

The dark logic principle should work with any logic as long as the dark logic nodes do not link to the the rest of the logic, even then the principle still applies This example has 12 sets, 10 linksets, and a 5 set dark loop that is replaced by virtual set V. The replaceable sets are in red and the set logic is given by:

S-12 = [r84 r66 r96 c26 c66 c(59)6 c(24)7 n26 b46 b82], L-10 = [r(24)6 r17 c6(27) n16 n72 n8(45) n94]

Substitute V1 =>

S8=[V r84 c(59)6 c(24)7 n26 b82], L10=[r(24)6 r17 c6(27) n16 n72 n8(45) n94] => r1c6<>7

The logic now has 8 sets, 10 linksets. It is therefore 2 so thus 3 overlap linksets are needed to eliminate a candidate. Linksets r17, c67, and n16 overlap at cell r1c6 to eliminate candidate 7r1c6.

Three dimensional view of the above logic example.

.

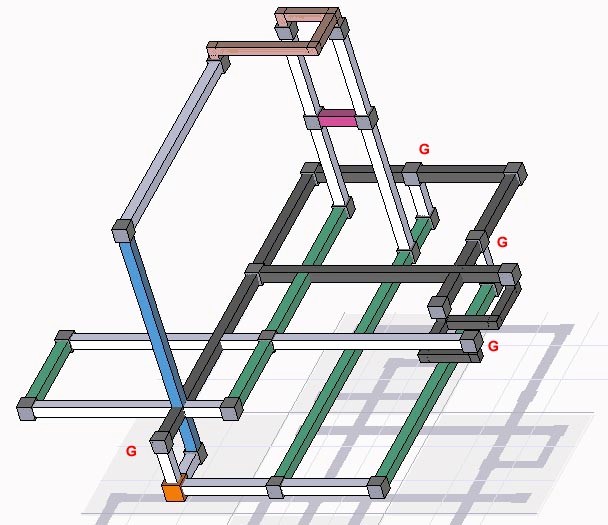

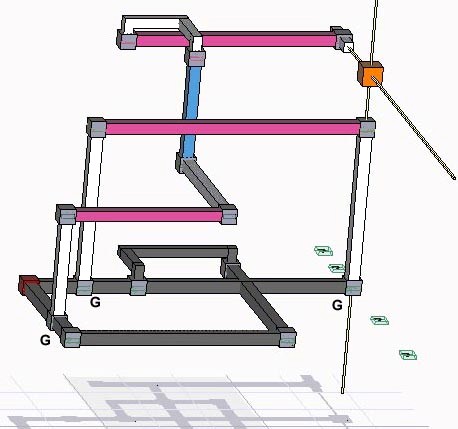

Another extreme example below comes from Easter Monster. It has 3 linksets and 18 sets of which 17 are linked into one great piece of dark logic. There are 3 guardians but two are in the same linkset. The logic is thus 2 sets + 3 linksets => rank 1, or a simple chain. The dark logic acts like a box or a hinge because it place puts guardians in the same linkset. The two linksets at the ends of the chain overlap to eliminate the orange candidate.
